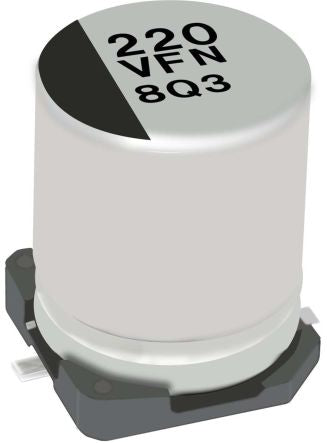

PANASONICEEEFN1K820UP82μF Electrolytic Aluminium Electrolytic Capacitor 80V dc, Surface Mount - EEEFN1K820UP

Điện dung 82µFĐường kính 10mmKhoảng cách chân 4.6mmKiểu lắp Surface Mount
Mã nhà sản xuất
EEEFN1K820UP
Thương hiệu
Quy cách đóng gói
Gói 10 cái
Mã kho
2043412
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic aluminium electrolytic V type FN series capacitor is a vibration proof surface mount capacitor with 82 μF capacitance. This capacitor mostly used in applications like industrial, infrastructure and automotive applications.

life expectancy under temperature up to 105 ? is 2000 hours

AEC-Q200 compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEEFN1K820UP
Capacitance 82µF
Voltage 80V dc
Mounting Type Surface Mount
Technology Aluminium Electrolytic
Dimensions 10 (Dia.) x 10.2mm
Length 10.2mm
Diameter 10mm
Maximum Operating Temperature +105°C
Lead Pitch 4.6mm
Tolerance ±20%
Polarised Polar
Series FN-V

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet PANASONIC EEEFN1K820UP (PDF)
