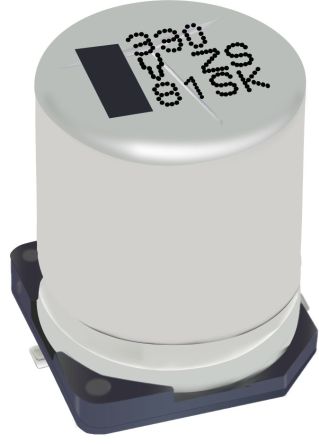

PANASONICEEHZS1V331P330μF Hybrid Aluminium Electrolytic Capacitor 35V dc, Through Hole - EEHZS1V331P

Điện dung 330µFĐường kính 10mmDissipation Factor 12%Leakage Current 115 µA
Mã nhà sản xuất
EEHZS1V331P
Thương hiệu
Quy cách đóng gói
10 cái (băng liên tục)
Mã kho
2105958
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic ZS series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 35 V voltage. It has 330μF of capacitance which size code is G12 and ultra low ESR between 13 mΩ and 19 mΩ.

Endurance 4000 h at 125 ℃

High ripple current and high capacitance

High-withstand voltage (to 63 V), low leakage current (0.01 CV or 3 μF)

Vibration-proof product is available upon request.

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEHZS1V331P
Technology Hybrid
Capacitance 330µF
Voltage 35V dc
Mounting Type Through Hole
Equivalent Series Resistance 14mΩ
Tolerance ±20%
Length 12.5mm
Maximum Operating Temperature +125°C
Dimensions 10 x 12.5mm
Series ZS
Ripple Current 3.5A
Minimum Operating Temperature -55°C
Dissipation Factor 12%
Diameter 10mm
Lifetime 4000h
Polarised Polar
Leakage Current 115 µA

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet PANASONIC EEHZS1V331P (PDF)
