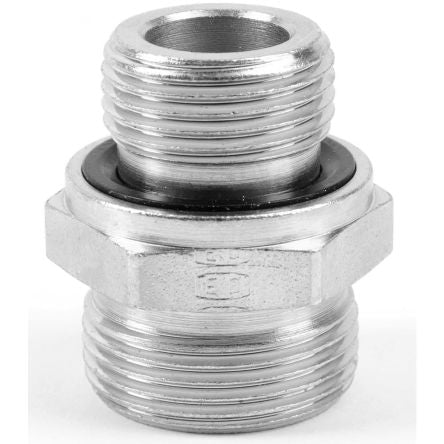

PARKERGE10LR1/2EDCFHydraulic Swivel 24° Cone Male to G 1/2 Male, GE10LR1/2EDCF

The Parker Ermeto DIN male stud high pressure hydraulic tube fitting is used to produce a high pressure, leak free tube connections and components in hydraulic systems. The main feature is the controlled progressive bite into the tube, due to a unique geometry. This hydraulic tube fitting is constructed with a Steel body. With a maximum operating pressure of 420 bar.

Over tightening protection

Compliance to ISO 1179

Fast and safe assembly
