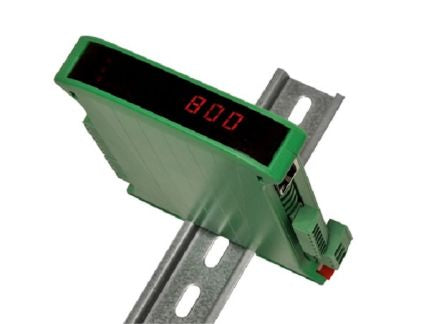

PENKO7600A10014-CHKSGM860 Series Weighing Controller, Voltage Input, Digital Output, 18 → 32V dc Supply

SGM860 weighing controller - Check Weighing - Profinet - Analog output - Digital I/O

The Penko SGM800 series product is a weighing digitizer, that offers solutions for problem free connections of strain gauge load cell based measuring, with any supervisory and control system. They all are easy DIN rail mountable and can be used as a stand alone digitizer or as a bus link system. The series also provide a wide variety in which a strain gauge signal can be digitized. They measure at high speed and have a high internal resolution, which makes it capable to do extremely accurate measurements. The wide range of available filter options helps to reduce the back ground noise to a minimum and stabilize the weighing signal.

Certified signal digitizer or amplifier

PC configurable

Easy to couple with PLC

Small on board display for trouble shooting

Communication options are RS232, RS422, Ethernet, Profinet, Profibus and analogue

Alibi memory

Controller options are filler, check weighing, belt weighing

Compact DIN rail mountable housing
