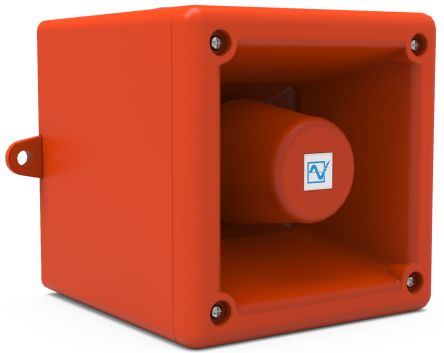

PFANNENBERG32033800000IS-A105N Series Surface Mount Electronic Sounder, 24 V dc, 103dB at 1 m, IP66, DC, 49-Tone
The Pfannenberg Sounders are designed for workplaces where dangerous, explosive atmospheres are expected. They offer the free selection of 49 different tones and are UKOOA/PFEER compliant, ensuring they meet safety standards for hazardous environments.
Ex ATEX sounder, 103dB, intrinsically safe for zones 0, 1 and 2, 49 tones, IP66
These sounders are used in workplaces where dangerous, explosive
atmospheres are to be expected
Free selection of 49 different tones UKOOA/PFEER conformant
High sound pressure level can be reduced by Up to 15 dB(A) via a potentiometer
Up to 2 tones can be selected externally in order to signal different alarms
Works on DC voltages between 10 and 28 V DC, rated voltage 24 V DC
An input protector prevents damage due to incorrect connection without a zener barrier or galvanic isolation
Can also be used outdoors thanks to housing made of self-extinguishing ABS and IP 66 protection system
Categories 1G, 2G and 3G (Zones 0, 1 and 2)
