PICO TECHNOLOGYPQ215PQ215 Probe Holder, For Use With PicoScope 6000E Series

Mã nhà sản xuất
PQ215
Thương hiệu
Quy cách đóng gói
1 bộ kit
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

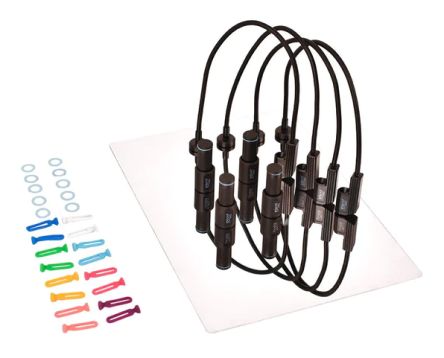

The Pico Technology PQ215 probe holder and PCB holder kit is a valuable accessory to your PicoScope 6000 Series oscilloscope. It has been designed exclusively for use with the 2.5 mm probes included with every PicoScope 6000 Series oscilloscope past and present (TA061, TA062, TA101, TA151, TA133, P2036 and P2056). Included in the kit is an A4-sized (about 11" x 9") steel base plate, four PCB holders, four probe holders and eight colored elastic cable ties.

Your PCB is fixed into place with four powerful magnetic posts employing spring-loaded clamps to grip the PCB under test. The clamps use a pair of replaceable insulating washers to avoid shorting tracks on the PCB.

With strong magnets at their base, the four gooseneck probe holders offer a flexible way to position the probe tip while holding it firmly poised in place. Their unique design employs a precisely weighted probe holder that pushes the sprung probe tip just enough to make a good contact on your PCB or unit under test.

Features and benefits

The base plate provides the secure footing for your probe positioning system

It's mirror finished, allowing to see the underside of the PCB to view any status LEDs during test

The probe holders include eight pairs of elastic cable ties in the PicoScope channel colors

Supplied with/Kit contains:

Base plate

4 spring-loaded magnetic PCB holder

4 magnetic 2.5 mm oscilloscope probe holder

8 colored elastic cable ties

What other Probes are available in this Pico range?

Pico PQ217 Probe holder kit with 4 x P2056 500 MHz probes

Pico PQ218 Pack of 4 probe holders

Pico PQ219 8-channel probe holder kit for PicoScope 6000E Series
