PICO TECHNOLOGYPQ219PQ219 Probe Holder, For Use With PicoScope 6000E Series

Mã nhà sản xuất
PQ219
Thương hiệu
Quy cách đóng gói
1 bộ kit
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The Pico Technology PQ219 probe holder and PCB holder kit is ideal for making hands-free measurements, for PCB inspection, or even as a soldering station! The kit is a valuable accessory for your 8-channel PicoScope 6824E or 6804E oscilloscope, ideal if you already have the scope and the four P2056 probes supplied

Your PCB is fixed into place with four powerful magnetic posts employing spring-loaded clamps to grip the PCB under test. The clamps use a pair of replaceable insulating washers to avoid shorting tracks on the PCB.

With strong magnets at their base, the four gooseneck probe holders offer a flexible way to position the probe tip while holding it firmly poised in place. Their unique design employs a precisely weighted probe holder that pushes the sprung probe tip just enough to make a good contact on your PCB or unit under test.

Features and benefits

The base plate provides the secure footing for your probe positioning system

It's mirror finished, allowing to see the underside of the PCB to view any status LEDs during test

The probe holders include eight pairs of elastic cable ties in the PicoScope channel colors

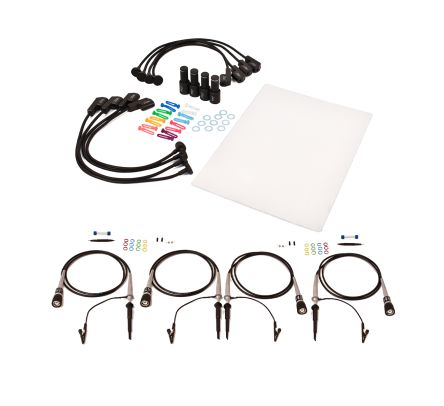

Supplied with/Kit contains:

An A4-sized (about 11" x 9") steel base plate

4 x PCB holders

8 x probe holders

8 x pairs of colored elastic cable ties

4 x P2056 probes (to add to the four probes already included with the 8-channel PicoScope 6000E)

What other Probes are available in this Pico range?

Pico PQ215 probe holder kit without probes

Pico PQ217 Probe holder kit with 4 x P2056 500 MHz probes

Pico PQ218 Pack of 4 probe holders
