PMABVBD-P366GTConduit Fitting, 36mm Nominal Size, M36, Polyamide 6, Black

Màu BlackVật liệu Polyamide 6Cỡ danh định 36mmCỡ ren M36
Mã nhà sản xuất
BVBD-P366GT
Thương hiệu
Quy cách đóng gói
Gói 20 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

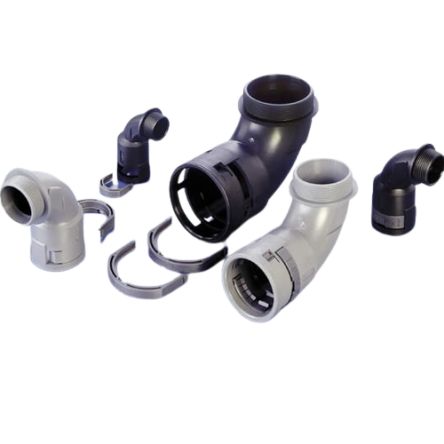

90° Curved Elbow

Black high shock resistant, push-in fittings designed for use with PMAFLEX conduits, manufactured from modified Polyamides. They have a locking feature which prevents unauthorised removal by the need to use a screwdriver to reopen, these fittings can be used in a wide range of applications where it is important that the cable protection system offers a high grade of sealing and safety.

One-piece, vibration free connection, featuring a smooth bore allowing easy threading of wires and cables, supplied with locknut.

PMAFLEX Polyamide & Polyurethane (IP68/66)

Features for all conduit types:

IP68/66 (dependent upon Fittings)

Halogen & Cadmium free

None flame propagating

Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents

PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved

PUE: -60°C to +50°C operating temperature, excellent reversed bending properties

VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec

PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J

VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)

PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL

THÔNG SỐ KỸ THUẬT
Manufacturer PMA
Manufacturer Part No. BVBD-P366GT
Nominal Size 36mm
Thread Size M36
Material Polyamide 6
Colour Black

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
