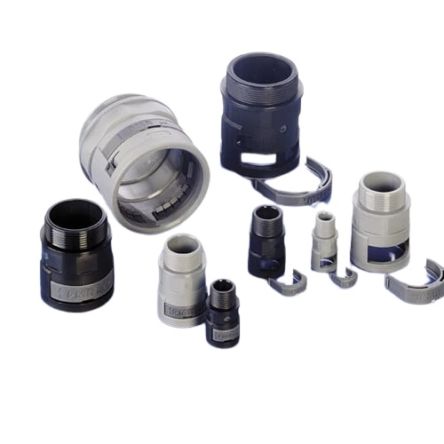

PMABVNV-P366Flexible Fitting, Conduit Fitting, 36mm Nominal Size, PG36, Polyamide 6, Black

Straight Fittings

A selection of high shock resistant, push-in fittings designed for use with PMAFLEX conduits, manufactured from modified Polyamides. They have a locking feature which prevents unauthorised removal by the need to use a screwdriver to reopen, these fittings can be used in a wide range of applications where it is important that the cable protection system offers a high grade of sealing and safety.

Note

Supplied with locknuts and gripping clip.

PMAFLEX Polyamide & Polyurethane (IP68/66)

Features for all conduit types:

IP68/66 (dependent upon Fittings)

Halogen & Cadmium free

None flame propagating

Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents

PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved

PUE: -60°C to +50°C operating temperature, excellent reversed bending properties

VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec

PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J

VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)

PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL
