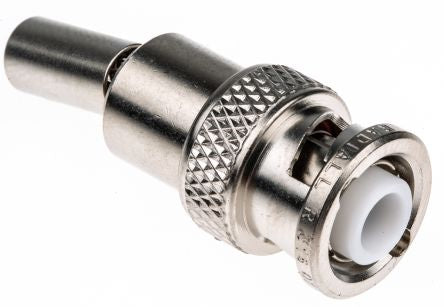

RADIALLR316072000Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Crimp Termination, RG141, RG58

Giắc đồng trục (RF) BNC Connector, Male, 50Ω

Chuẩn giắc BNC ConnectorĐực / cái MaleTrở kháng 50ΩLoại cáp RG141, RG58Kiểu lắp Cable Mount
Mã nhà sản xuất
R316072000
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
2127393
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Radiall 50 Ohm BNC.HT High Voltage RF Coaxial Crimp Plug

From Radiall, this BNC.HT Series coaxial plug is suitable for high voltage. The plug has a test voltage of 6000 V dc when unmated and a test voltage of 10000 V dc when mated. The plug has crimp cable connection with a bayonet fixing for reliable mating. The 50 Ω plug has a nickel plated brass body and a silver plated contact, with a PTFE Dielectric.

Features & Benefits

Suitable for use with RG-141, RG-58 and KX 15 Cables

Not mateable with the BNC or SHV Series

Insulation Resistance: 5000 MΩ

VSWR: <1.2 + 0.2F (GHz)

Temperature Range: -55°C to +155°C

Product Application Information

This high-voltage BNC Radio Frequency connector has applications in radio antennas and avionics.

Radiall 50 Ω BNC.HT High-Voltage RF Coaxial Crimp Plug

From Radiall, this BNC.HT Series coaxial plug is suitable for high voltage, and has a test voltage of 6000 V dc when unmated and a test voltage of 10000 V dc when mated. The plug has crimp cable connection with a bayonet fixing for reliable mating. The 50 Ω plug has a nickel plated brass body and a silver plated contact, with a PTFE Dielectric.

Features and Benefits

  • Suitable for use with RG-141, RG-58 and KX 15 Cables
  • Not Intermateable with the BNC or SHV Series
  • Insulation Resistance: 5000 MΩ
  • VSWR: <1.2 + 0.2F (GHz)
  • Temperature Range: -55°C to +155°C

Application Information

This high-voltage BNC Radio Frequency connector has applications in radio antennas and avionics.

Nickel plated brass bodied 50Ω connectors with PTFE insulators and beryllium copper contacts. Designed for RF and high voltage application.

THÔNG SỐ KỸ THUẬT
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG141, RG58
Bulkhead No
Body Plating Nickel
