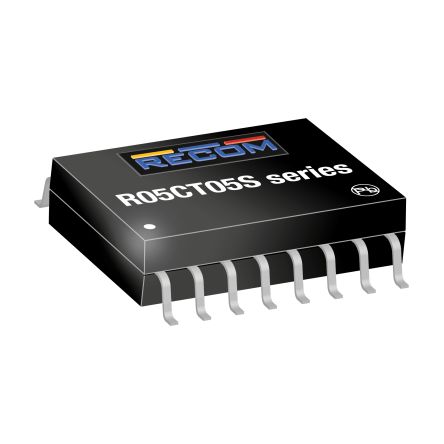

RECOMR05CT05S - CTR05CT 500mW Isolated DC-DC Converter, Voltage in 4.5 → 5.5 V dc, Voltage out 3.3/5V dc Medical Approved

Efficiency 0.6Input Voltage Nominal 5V dcInput Voltage Range 4.5 → 5.5 V dc✓ Isolated
Mã nhà sản xuất
R05CT05S - CT
Thương hiệu
Quy cách đóng gói
Ống 10 cái
Mã kho
2117165
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Recom R05CT05S is a Low cost, low profile,500mW SMD isolated DC/DC single output converter ideal for applications. such as communication, current sensing, and medical applications which require robust isolation. It is a single solution with 5V input and a user-definable single, regulated 3.3V or 5V. output. There is no minimum load requirement. Standard isolation is 5kVAC/1min with a 2MOPP rating for medical applications. The operating temperature is from -40°C up to +140°C with derating.

It is a compact 10.3x7.5mm SMD package

It has 5kVAC reinforced isolation

It has 5V or 3.3V post-regulated, selectable outputs

It has low EMI emissions

Ultrawide temperature range (-40°C to +140°C)

It has low profile of 2.6mm

THÔNG SỐ KỸ THUẬT
Manufacturer Recom
Manufacturer Part No. R05CT05S - CT
Output Voltage 3.3/5V dc
Input Voltage Range 4.5 → 5.5 V dc
Power Rating 500 mW
Input Voltage Nominal 5V dc
Mounting Type Surface Mount
Isolated Yes
Number of Outputs 1
Output Voltage Adjustment Range 3.3 → 5 V dc
Package SMD
Isolation Voltage 5kV
Width 7.5mm
Length 10.3mm
Series R05CT
Load Regulation 0.015
Minimum Temperature -40°C
Maximum Temperature +150°C
Efficiency 0.6
Medical Approved Yes

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
