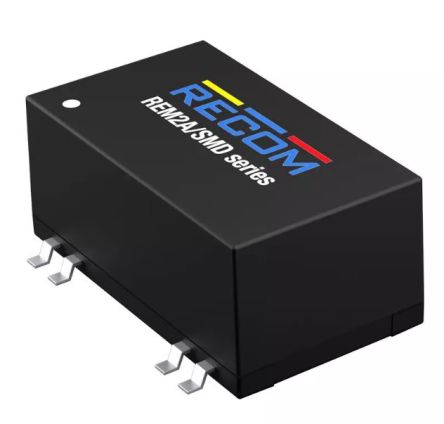

RECOMREM2A-1212D/SMDREM2A Series DC-DC Converter, 12V dc/ 83mA Output, 9-18 V dc Input, 2W, Surface Mount, +105°C Max Temp -40°C Min
Input Voltage Nominal 12V dcInput Voltage Range 9 → 18 V dcKiểu lắp Surface MountOutput Current 83mA
Liên hệ
The Recom DC to DC Converter is a REM2A series medical grade regulated DC to DC converter. It features a reinforced 250VAC continuous working isolation with greater than equals to 8mm creepage or clearance. Its compact SMD package offers industry standard pinouts with tightly regulated single or dual outputs and UVLO, SCP, and OVP. The operating ambient temperature range is from -40°C to +90°C without derating.
RoHS and Reach compliant
3 year warranty
2MOPP and 250VAC working voltage isolation
IEC/EN/UL 60601 and 62368-1 certified
Compact 24.3x14.4 mm footprint
