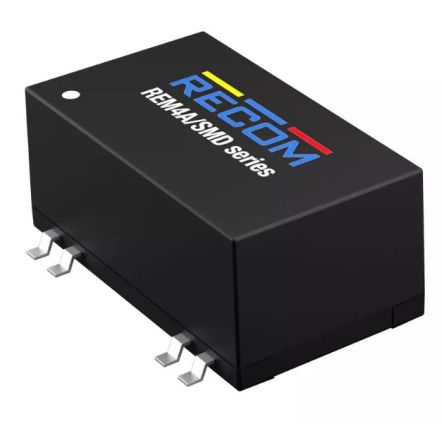

RECOMREM4A-2412D/SMDREM4A Series DC-DC Converter, 12V dc/ 146mA Output, 18-36 V dc Input, 4W, Surface Mount, +105°C Max Temp -40°C
Input Voltage Nominal 24V dcInput Voltage Range 18 → 36 V dcKiểu lắp Surface MountOutput Current 146mA
Liên hệ
The Recom DC to DC Converter is a REM4A series of medical grade regulated DC to DC converter. It features a feature reinforced 250VAC continuous working isolation with greater than equals to 8mm creepage or clearance. Its compact SMD package offers industry standard pinouts with tightly regulated single or dual outputs and UVLO, SCP, and OVP. The operating ambient temperature range is from -40°C to +80°C without derating.
RoHS and Reach compliant
3 year warranty
2MOPP and 250VAC working voltage isolation
IEC/EN/UL 60601 and 62368-1 certified
Compact 24.3x14.4mm footprint
