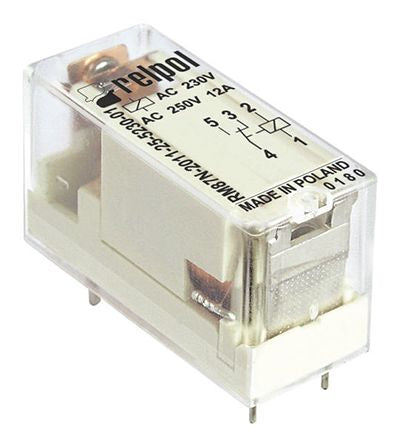

RELPOLRM87N-2011-35-1024SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 12 A General Purpose Relay

Rơ le thường 24V dc, SPDT, 12A

Điện áp cuộn coil 24V dcCấu hình tiếp điểm SPDTDòng đóng cắt 12AKiểu lắp PCB MountKiểu chân Plug In
Mã nhà sản xuất
RM87N-2011-35-1024
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1232091
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Relpol RM87N Series Miniature Relays

Relpol RM87 series miniature industrial relays for general purpose applications. All relays are designed for PCB mounting or in plug-in sockets.

Miniature dimensions

Cadmium-free contacts

AC and DC coils

RoHS compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Relpol
Manufacturer Part No. RM87N-2011-35-1024
Coil Voltage 24V dc
Contact Configuration SPDT
Mounting Type PCB Mount
Switching Current 12A
Number of Poles 1
Latching No
Series RM87
Terminal Type Plug In
Maximum Switching Voltage AC 440V
Maximum Switching Voltage DC 24V dc
Length 29mm
Coil Resistance 1440Ω
Coil Power 480 mW
Depth 12.7mm
Contact Material Silver Alloy
Height 15.7mm
Minimum Operating Temperature -40°C
Standards Met CSA, cULus, EAC, PN-EN 60335-1, VDE
Life >100000 (Electrical) cycles, >30000000 (Mechanical) cycles
Maximum Operating Temperature +85°C
Isolation Coil To Contact 5kV ac
Maximum Switching Power AC 3 kVA

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
