RITTAL3385540Enclosure Cooling Unit - 2000W, 400V

External Circuit Air Flow 1760m³/hInput Power Rating 950WInternal Circuit Air Flow 470m³/hMaximum Cooling Power 2000W
Mã nhà sản xuất
3385540
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2240084
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

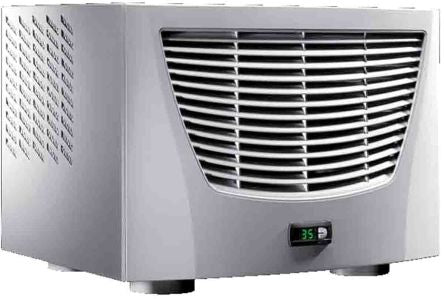

Rittal Series SK Enclosure Cooling Unit, 2000W Maximum Cooling Power, 1290W Input Power Rating - 3385540

This roof-mounted enclosure cooling unit is designed for effective thermal management across various applications. It measures 597x417x475mm and provides a maximum cooling capacity of 2000 W, making it suitable for industrial air conditioning needs. The product utilises R-513A refrigerant to enhance performance in rigorous environments.

Features & Benefits

  • Cooling capacity of 2000 W optimises temperature control.
  • Internal circuit air flow of 470m³/h ensures reliable cooling.
  • External circuit air flow capability of 1760m³/h increases efficiency.
  • Factory-installed e-Comfort controller allows for precise temperature management.
  • Constructed from sheet steel for durability.
  • Includes an electric condensate evaporation system to minimise water accumulation.

Applications

  • Suitable for cooling industrial electrical enclosures.
  • Addresses automation and electronics cooling requirements.
  • Works well in environments with limited space for cooling systems.
  • Ideal for scenarios needing consistent temperature regulation.

Can it handle extreme temperature conditions?

Yes, it operates within a range of +10 to +55°C.

Is it compatible with IoT interfaces?

Yes, it can connect via the Blue e IoT adaptor.

How does it manage condensate?

It features an integrated electric condensate evaporation system.

Can it be mounted without additional support?

Yes, it is designed for roof-mounted installation with included assembly parts.

.THÔNG SỐ KỸ THUẬT:
Maximum Cooling Power 2000W
Internal Circuit Air Flow 470m³/h
Input Power Rating 950W
External Circuit Air Flow 1760m³/h
Supply Voltage 400V
