RITTAL3457500SV 3457 Series Sheet Steel Clamp for Use with Busbar Systems, 10.5 x 11mm

Rittal Clamp Kit, 15 x Pieces, 16 to 50mm² Conductor Sizes - 3457500

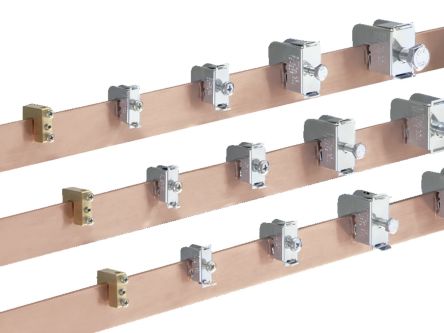

Keep a tight grip on conductors with this clamp kit from Rittal. As a U-shaped device, it hooks over a copper busbar and secures in place using the supplied screw-clamp mechanism. It only needs a clamping area of 10.5 x 11mm. The versatile component works with bar thicknesses up to 10mm and round conductor sizes between 16 and 50mm², so it's ideal for a wide range of electrical setups.

Features & Benefits

• Sheet steel construction ensures it's strong and long-lasting
• Passivated zinc plating provides resistance to corrosion
• Positionable anywhere along the length of the bar for flexibility

Applications

• Building infrastructure
• Industrial control panels
• Switchgear systems

Does this clamp kit work with fine wires?

Yes, the clamps are suitable for conductors with fine wires. To get the best results, it's recommended to attach ferrules to the cable ends first.
