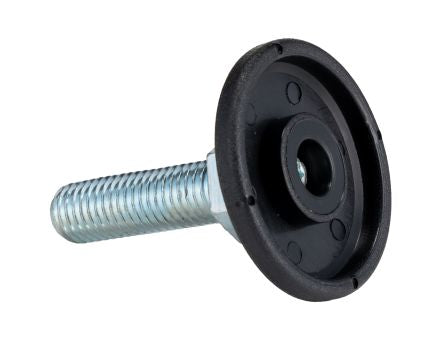

RITTAL4612000PS Series Sheet Steel Leveling Foot for Use with Enclosure, M12

Rittal PS Series Enclosure Accessory, Sheet Steel - 4612000

This sheet steel levelling foot, part of the PS series from Rittal is designed to help in compensating for height differences due to floor irregularities. Featuring a mounting thread of M12, this levelling foot is ideal for a range of enclosures like VX, VX IT, TS, TS IT, VX SE, PC, IW, and blue e+ chillers.

Features & Benefits

• Constructed with sheet steel material for durability
• Levelling range of 18 - 43 mm for varying height adjustments
• Designed without a hex socket for easy installation and adjustment
• Max load capacity of 3,000 N per component
• Dimensions of M12 x 40 for secure mounting
• Compatible with a range of enclosure types, including VX, TS, TS IT, VX SE, PC, IW, and blue e+ chillers

Applications

• Levelling feet suitable for TS, TS IT, SE, PC, IW, Chiller Blue e+, TX CableNet
• Ideal for adjustment height ranging from 18 - 43 mm
• Used with enclosures to compensate for floor irregularities

Can it be used for height adjustment?

It is designed to compensate for height differences caused by floor irregularities ranging from 18 - 43mm.

Will it support heavy loads?

Yes, with a maximum load capacity of 3,000 N per component, it can effectively handle heavy-duty applications.

Is it compatible with various enclosure types?

This leveling foot is designed to fit a wide range of enclosures, including VX, TS, TS IT, VX SE, PC, IW, and blue e+ chillers.

Can it be easily adjusted for installation?

It comes with a mounting thread of M12 x 40, allowing for secure and hassle-free installation.

Does it require any additional equipment for mounting?

A base/plinth adaptor is needed for mounting on the VX base/plinth for added stability and support.
