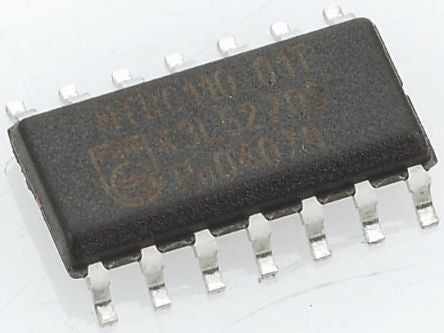

ROHMBU4011BF-E2BU4011BF-E2, Quad 2-Input NAND Logic Gate, 3 → 16 V, 14-Pin SOP

Input Type LSTTL1Logic Family 4000Logic Function NANDMaximum High Level Output Current -1.2mA
Mã nhà sản xuất
BU4011BF-E2
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Mã kho
7316986
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Logic Function NAND
Mounting Type Surface Mount
Number of Elements 4
Number of Inputs per Gate 2
Schmitt Trigger Input No
Package Type SOP
Pin Count 14
Logic Family 4000
Input Type LSTTL1, LTTL2
Maximum Operating Supply Voltage 16 V
Maximum High Level Output Current -1.2mA
Maximum Propagation Delay Time @ Maximum CL 90ns
Minimum Operating Supply Voltage 3 V
Maximum Low Level Output Current 3mA
Height 1.5mm
Dimensions 8.7 x 4.4 x 1.5mm
Length 8.7mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Width 4.4mm
Propagation Delay Test Condition 50pF
