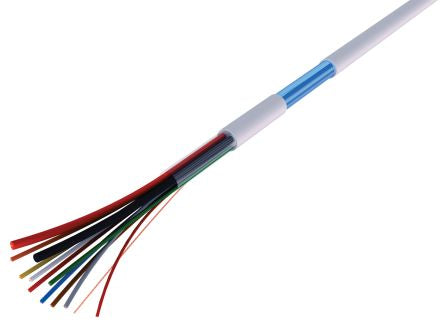

RS PRO 6 Core Screened Security Cable 2 x 0.75 mm², 4 x 0.22 mm² CSA, Polyvinyl Chloride PVC Sheath, 100m; 136-8144
Mã kho: 1368144
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Fire Behaviour | Flame Retardant, Self-extinguishing |
| Number of Cores | 6 |
| Outer Diameter | 5.5mm |
| Cross Sectional Area | 2 x 0.75 mm², 4 x 0.22 mm² |
| Reel Length | 100m |
| Sheath Material | Polyvinyl Chloride PVC |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 200 V @ 0.22 mm², 250 V @ 0.75 mm² |
| Cable Shape | Multicore |
| Screened/Unscreened | Screened |
| Series | MULTI 275 + n B |
| Conductor Resistance | 26 Ω/km @ 0.75 mm², 96 Ω/km @ 0.22 mm² |
| Sheath Colour | White |
| Screen Type | Aluminium Tape |
| Drain Wire | Yes |
| Jacket Ripcord | Yes |
| Conductor Material | Copper |
| Insulation Material | PVC |
