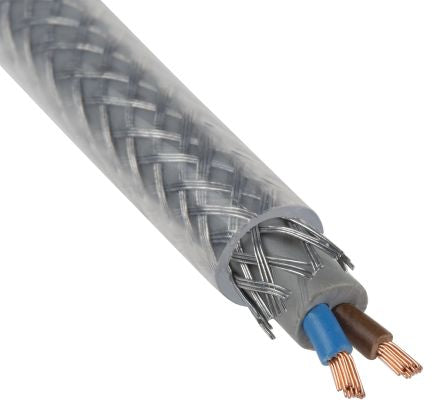

SY 2 core 1.0mm (50M); 196-4657
Mã kho: 1964657
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 1 mm² |
| Outer Diameter | 9.5mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 300/500 V |
| Core Strands | 32/0.2 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Armoured | Yes |
| Earth Cable | No |
| Cable Shape | Multicore |
| Screen Type | Galvanised Steel |
| Standards Met | BS EN 50525 |
| Length | 50m |
| Bedding Material | PVC |
| Conductor Material | Annealed Copper |
| Minimum Bend Radius | 6 x Diameter |
| Insulation Material | PVC |
| Shielding | Galvanised Steel Wire Braid |
| Screened/Unscreened | Screened |
