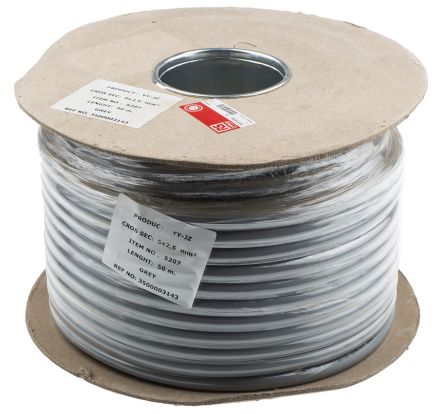

RS PRO 5 Core YY Control Cable, 2.5 mm², 50m, Unscreened; 522-654
Mã kho: 522654
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 2.5 mm² |
| Screened/Unscreened | Unscreened |
| Sheath Colour | Grey |
| Outer Diameter | 10.3mm |
| Current Rating | 15 A |
| Voltage Rating | 300/500 V |
| American Wire Gauge | 13 AWG |
| Conductor Material | Copper |
| Core Strands | 30/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Maximum Operating Temperature | +80°C |
| Minimum Bend Radius | 8 x Diameter |
| Conductor Resistance | 8.2 Ω/km |
| Insulation Material | PVC |
| Length | 50m |
| Filler Material | PVC |
| Minimum Operating Temperature | -20°C |
