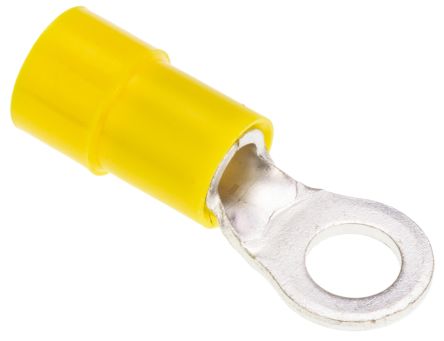

RS PRO Insulated Ring Terminal, M5 Stud Size, 4mm² to 6mm² Wire Size, Yellow; 613-9659
Mã kho: 6139659
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M5 |
| Colour | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 1mm |
| Overall Length | 26mm |
