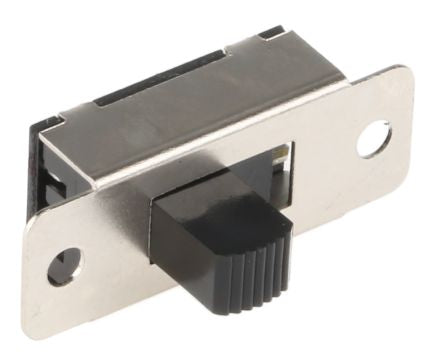

Panel Mount, PCB Slide Switch DPDT On-On 0.5 A V ac @ 125 Slide; 665-332
Mã kho: 665332
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | Panel Mount, PCB |
| Switch Operation | Latching |
| Contact Current Rating | 0.5 A V ac @ 125 |
| Terminal Type | Solder |
| Actuator Type | Slide |
| Length | 36mm |
| Width | 13.5mm |
| Depth | 7mm |
| Dimensions | 36 x 13.5 x 7mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -10 → +60°C |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Contact Material | Silver |
| Voltage Rating | 125V ac |
