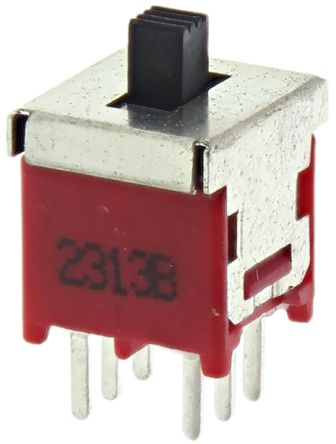

PCB Slide Switch Double Pole Double Throw (DPDT) On-Off-On 3 A @ 120 V ac Top; 734-7252
Mã kho: 7347252
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | On-Off-On |
| Contact Current Rating | 3 A @ 120 V ac |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Length | 10.16mm |
| Width | 9mm |
| Depth | 9.2mm |
| Dimensions | 10.16 x 9 x 9.2mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 30000Cycles |
| Actuator Material | Nylon |
| Contact Material | Silver Plated Copper Alloy |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Voltage Rating | 120V ac |
