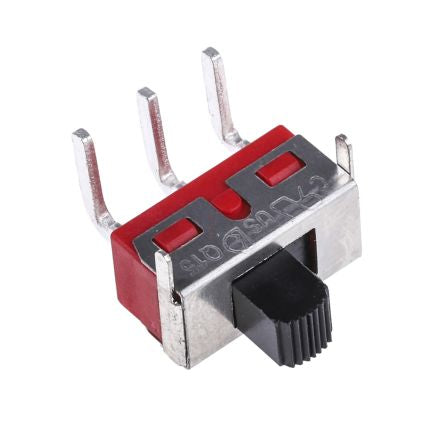

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 5 A @ 28 V dc Side; 734-7296
Mã kho: 7347296
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 28 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Side |
| Length | 12.7mm |
| Width | 6.6mm |
| Depth | 6.87mm |
| Dimensions | 12.7 x 6.6 x 6.87mm |
| Contact Resistance | 10mΩ |
| Mechanical Life | 30000Cycles |
| Actuator Material | Nylon |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Voltage Rating | 28V dc |
| Contact Material | Silver Plated Brass |
