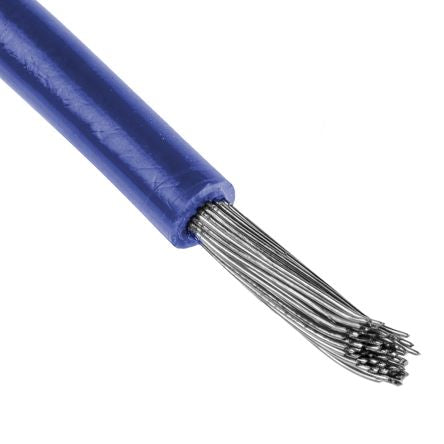

RS PRO Mid-blue Tri-rated Cable, 6 mm² CSA, 1 kV, 53 A, 100m; 811-1476
Mã kho: 8111476
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 6 mm² |
| Sheath Colour | Mid-blue |
| Length | 100m |
| American Wire Gauge | 10 AWG |
| Current Rating | 53 A |
| Core Strands | 84/0.3mm |
| Voltage Rating | 1 kV |
| Maximum Operating Temperature | +60 (Oil) °C, +105 (Air) °C |
| Outer Diameter | 5.1mm |
| Conductor Material | Annealed Copper |
| Insulation Material | PVC |
| Insulation Wall Thickness | 0.8mm |
| Tri-rated | Yes |
| Standards Met | CSA C22.2 Type TEW, UK BS 6231, UL 1015 |
| Type | Tri-rated |
