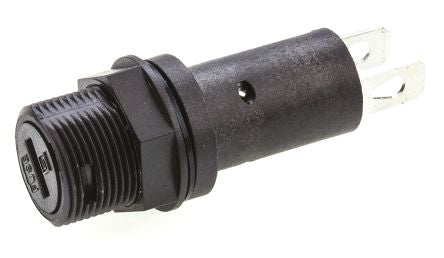

SCHURTER3101.012016A Panel Mount Fuse Holder for 5 x 20mm Fuse, 250V ac

Cap Style SlottedVật liệu tiếp điểm Tin Plated Copper AlloyDòng định mức 16AKích thước cầu chì 5 x 20mm
Mã nhà sản xuất
3101.0120
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Schurter 5x20mm Fuseholders – FPG Series

Schurter FPG series fuseholders are a robust and dependable solution to a range of fuse requirements. Available with either a slotted or fingergrip plug, the Schurter FPG fuseholder series offers increased versatility of choice. Applications include industrial electronics, household appliances and medical equipment.

Terminals: 4.8x0.5mm

Protection: PC2

Sealed from the rear

Thermoplastic body

Tin-plated brass contacts

Approvals

UL & CSA (16A/250V), VDE & SEMKO (10/250V)

The Schurter fuse holder is used to integrate fuses safely in electrical circuits, ensure a robust current path and provide a method to replace fuses once they manage overcurrent events as intended. Fuse holders come in a range of styles each designed to suit a specific style of a fuse. Fuse holders can be categorized by their attachment or mounting type.

Compact design

Solder terminal

Mounting from rear side

Thermoplastic material

Degree of protection IP67 available

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

THÔNG SỐ KỸ THUẬT
Manufacturer Schurter
Manufacturer Part No. 3101.0120
Fuse Size 5 x 20mm
Current Rating 16A
Voltage Rating 250V ac
Contact Material Tin Plated Copper Alloy
Cap Style Slotted
Series FPG2
International Protection Rating IP67
Protection Category PC2

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
