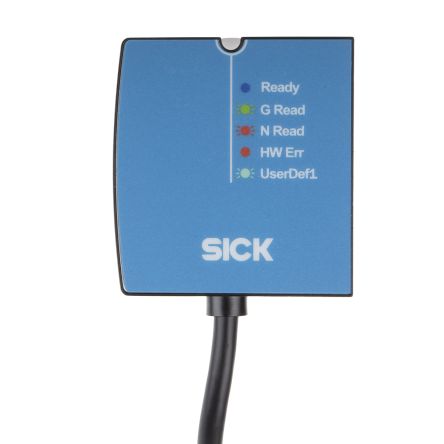

SICKCLV601-0D200Fixed Cable Bar code reader, 5 V dc

Connection Type CableData Interface RS232Maximum DC Voltage 5VOptical Technology LED
Mã nhà sản xuất
CLV601-0D200
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1818102
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Sick Bar code reader

The Sick CLV60x 5VDC 1W bar code reader comes with a centre-exit 2m 1x9-pin male connector. This CMOS line scanner sensor has a high scanning frequency of 750 Hz. This makes it is suitable for fast applications too. It has PMMA front screen and zinc die-cast light blue, black colour housing.

Features and Benefits

  • Compact in dimension 55mmx52mmx20mm
  • Configured quickly and easily using the SOPAS ET software
  • Front reading field bar code reader
  • Multifunctional 1 RGB LED, acoustic (Beeper/buzzer) indicators on case
  • Operating temperature ranges between 0°C and 50°C
  • Reading distance range between 15mm and 70mm
  • RS-232 or USB interface to connect to a control

Applications

  • Aerospace
  • Automotive
  • Electronics
  • Packaging

Certifications

  • CE certified
  • EAC
  • EN 60068-2-27:2009-05
  • EN 60068-2-6:2008-02
  • EN 61000-6-2:2005-08
  • EN 61000-6-3/A1:2011-03
  • EN 62471:2008-09
  • IEC 62471:2006-07
  • IP40 (DIN 40 050) rated
  • VDE 0106/IEC 1010-1
THÔNG SỐ KỸ THUẬT
Reader Style Fixed
Reading Distance 30mm
Optical Technology LED
Connection Type Cable
Maximum DC Voltage 5V
Tilt Angle ±25°
Supply Voltage 5 V dc
Data Interface RS232
Power Consumption 1 W
Length 55mm
Width 52mm
Dimensions 55 x 52 x 20 mm
Minimum Operating Temperature 0°C
Depth 20
Maximum Operating Temperature +50°C
