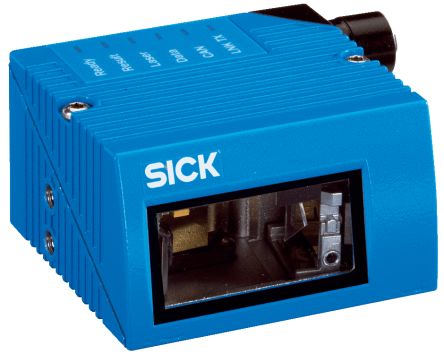

SICKCLV620-0120Fixed Cable Bar code reader, 10 → 30 V dc

Connection Type CableDevice Type Barcode ReaderMaximum DC Voltage 30VOptical Technology Laser
Mã nhà sản xuất
CLV620-0120
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2133743
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

At a glance

Your Benefit

The CLV62x product family consists of compact, powerful fixed mount bar code scanners which were designed for a wide range of applications. Powerful, simple operation and flexibility are terms which characterize the CLV62x product family. The CLV62x combines a high reading performance with the SMART620 code reconstruction system: A reading algorithm that can accurately identify bar codes even if they are damaged or partially covered. The CLV62x is available as a standard variant, or with an integrated Ethernet interface, including Ethernet/IP and PROFINET protocols. The high-performance scanner features a range of additional functions such as remote diagnostics, which are enabled by the integrated web server and integrated evaluation of read statistics.

Applications

High read rate of damaged, dirty, and partially covered bar codes due to enhanced SMART620 code reconstruction

Increased scanner intelligence enables sophisticated configuration of logical operations, reducing the control system programming effort. Data is then delivered in the desired format

No supplementary Ethernet gateway required with Ethernet models – lowers costs

The CLV62x scanner can be used as a multiplexer in any CAN scanner network from SICK – no supplementary multiplexer necessary

Real-time code identification even at very high conveyor speeds

Compact design and easy operation enable installation in situations with limited spaceCAN, Ethernet TCP/IP, PROFINET, and EtherNet/IP available on board, no additional gateway needed (depending on variant)

SMART620 code reconstruction technology

Flexible sorting, filtering, and logical functions

Advanced, easy-to-use SOPAS configuration software

High scanning frequency of up to 1,200 Hz

Small housing

Note

.THÔNG SỐ KỸ THUẬT:
Device Type Barcode Reader
Connection Type Cable
Optical Technology Laser
Reading Distance 365mm
Maximum DC Voltage 30V
