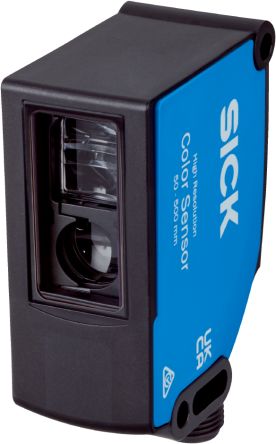

SICKCSS-WBGAD4115AA10ZColour Sensors 50 → 500 mm, LED IO-Link, PNP/NPN, 100 mA, 10.8 → 28.8 V, IP67

Overview

The new CSS High Resolution colour sensor can even distinguish between fine colour nuances. It also detects colour gradients and structured materials like wood. Besides sensing distances of up to 500 mm, the CSS High Resolution comes with an automatic sen

Furthermore, the full colour TFT sensor display shows colour values (L*a*b or RGB) as well as the similarity of a detected colour to a taught-in colour. Up to 24 colors per identification task (job) can be transferred via the IO-Link interface and saved e

At a glance

High colour resolution

Detects colour gradients and structured materials

Sensing distances up to 500 mm

Automatic sensing distance regulation

Output of colour values (L*a*b/RGB) and colour similarity

Up to 24 colors per identification task (job) can be sa

Your Benefit

Attractive alternative to expensive colour measurement solutions thanks to the output of colour values and high colour resolution

Saves resources and increases process flexibility because up to 24 colors per identification task (job) can be transferred vi

Applications

Quality control: Thorough check of colour tone and structure, for example after printing, dyeing or lacquering

Object sorting and separation: differentiation of objects, for example components by colour

Mark and object positioning: detecting coloured mark
