SICKDOS-0803-GPC / 6042092DOS Compact Power Connector Cable Mount Plug, 4A, 60 V

Mã nhà sản xuất
DOS-0803-GPC / 6042092
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

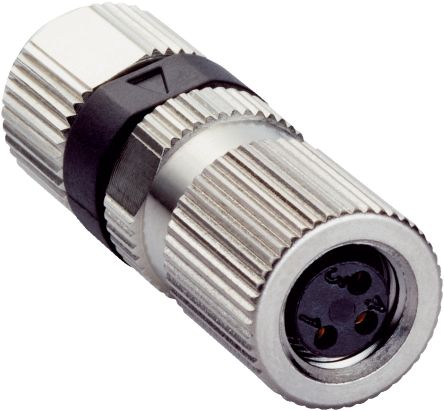

The Connector constructed wth Head A features a female connector with M8 specifications, presenting a straight design with a 3 pin configuration. The connection is established through a convenient Piercecon fast connection method, simplifying the installation process. The connector is crafted from durable PA 66 material in an attractive silver color, ensuring robust performance. The locking nut, composed of nickel-plated brass, provides secure fastening with a tightening torque of 0.2 Nm.

This connector accommodates cable diameters ranging from 3 mm to 5 mm, supporting a conductor cross section of 0.38 mm². Adhering to safety standards, it boasts a reference voltage of ≤ 60 V and a current loading capacity of 4 A. With an IP68 enclosure rating. The ambient operating temperature ranges from -25 °C to +90 °C.

At a glance

-

Your Benefit

Applications
