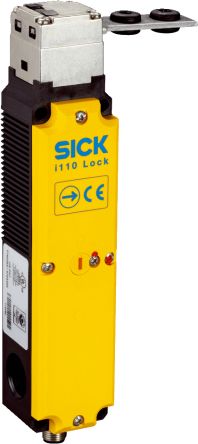

SICKi110-E0454i110 Safety Switch, 2NC, Power, Glass Fibre Reinforced Thermoplastic

Overview

The i110 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. The locking device has a narrow housing made from plastic and a rugged metal actuator head.

This allows the i110 Lock safety switch to achieve the highest restraint forces in this product family.

At a glance

Narrow plastic housing

Metal actuator head

Rigid or mobile actuators

Available with M20 X 1.5 cable entry glands or Flexi Loop-compatible M12 plug connector (depending on variant)

Power to lock or power to release variants

Lock and door monitoring

Your Benefit

Small design simplifies installation and makes it easy to mount directly on the guard door frame

Flexible electrical connectivity due to three cable entry glands

Improved diagnostics due to additional contacts for door monitoring

Simple adjustment due to various actuators that are suitable for any door

Different switching elements offer the appropriate solution for electrical installation

Rugged metal housing provides increased machine reliability, even when the guard has a mechanical offset

Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort

Applications

Fields of applications

Safe monitoring of rotatable, laterally sliding or removable guards

Personal protection for over travel

Process protection for automated production systems
