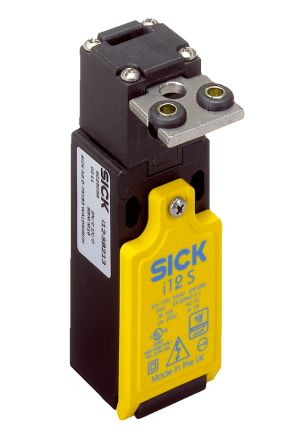

SICKi12-SB215i12 Safety Switch, 2NC, Glass Fibre Reinforced Thermoplastic

Mã nhà sản xuất
i12-SB215
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

Safety switches with a separate actuator are made up of two parts: a safety switch that is mounted on the fixed part and an actuator that is mounted on the mobile part of the guard. When the guard is closed, the actuator is moved into the safety switch. This achieves the safe status and the safety-relevant contacts are closed.

These devices are ideal for protecting sliding and rotating doors, as well as removable protective covers. The i12S safety switch with a separate actuator is characterized by its miniature design, which makes direct mounting on the framework quick and easy.

At a glance

Narrow plastic housing

Rigid and mobile actuators

Available with M16 X 1.5 cable entry gland or Flexi Loop-compatible M12 plug connector (depending on variant)

Slow-action switching element with up to three contacts

IP 67 enclosure rating

Your Benefit

cost effective solution for all standard safety applications

Small design simplifies installation and makes it easy to mount directly on the guard door frame

High reliability and safety due to the cone shaped metal alignment aid

Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort

Applications
