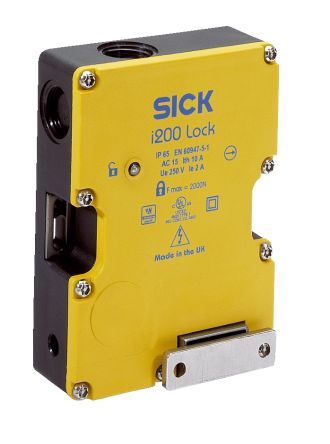

SICKi200-M0323Locki200 Solenoid Interlock Switch, 24 V dc, 3NC/2NO

Actuator Included KhôngNormal State Configuration 3NC/2NOĐiện áp nguồn 24 V dc
Mã nhà sản xuất
i200-M0323Lock
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2230989
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

The i200 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. The locking device features a rugged metal head, various actuators, flexible electrical connectivity and an LED status indicator. This safety locking device is an extremely versatile solution ideal for monitoring doors and locks.

At a glance

Compact plastic housing

Stainless steel entry for actuator

Either rigid, mobile or bolt actuators available

3 M20 x 1.5 cable entry glands

Power to lock or power to release variants

Lock and door monitoring

LED locking indicator

Your Benefits

High reliability due to rugged metal actuator head, even when the guard has a mechanical offset

Flexible electrical connectivity due to three cable entry glands

Improved diagnostics due to additional contacts for door monitoring and LED lock monitoring

Different switching elements offer the appropriate solution for electrical installation

Bolt actuator offers personal protection in the hazardous area and prevents an undesirable restart of the machine

Applications

Safe monitoring of rotatable, laterally sliding or removable guards

Personal protection for over travel

Process protection for automated production systems

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

.THÔNG SỐ KỸ THUẬT:
Supply Voltage 24 V dc
Series i200
Actuator Included No
Normal State Configuration 3NC/2NO
