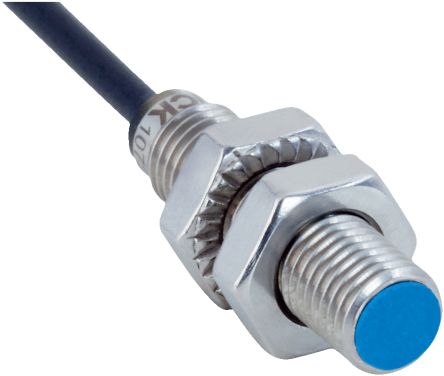

SICKIMB08-02BDSVU2KInductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, 2-Wire NO, 10 → 30 V dc

Body Style Threaded BarrelConnection Type Pre-CabledDetection Range 2mmDigital Switching Output Type 2-Wire
Mã nhà sản xuất
IMB08-02BDSVU2K
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Overview

The inductive IMB proximity sensor is a byword for reliability in harsh working conditions, whether it is in contact with cooling lubricants or being used outdoors. With its extended sensing ranges, made highly precise thanks to the use of SICK ASIC technology, the IMB ensures reliable, stable processes. What's more, its wide-ranging specification limits allow the IMB to be used in applications where specialist devices were once the only solution – a huge benefit when it comes to product selection and warehousing. The optical adjustment indicator and self-locking nuts save time during commissioning and help cut down on errors.

Communication via IO-Link is also possible, creating more flexibility and adding more functions for automation applications. With an extensive standard product portfolio available, even special devices can be put into action quickly and easily.

At a glance

Types: M8 to M30

Extended sensing ranges: 2 mm to 20 mm

Electrical configuration: DC 3-/4-wire, DC 2-wire

Enclosure rating: IP 68, IP 69K

Temperature range: –40 °C to +100 °C

Rugged stainless-steel housing

plastic sensing face

Optical adjustment indicator, IO-Link-ready

Resistant to oils and cooling lubricants

suitable for use outdoors

Your Benefit

Straightforward product selection as fewer sensor variants are required – one sensor suits a whole range of applications

Stable processes thanks to extended, highly precise sensing ranges enabled through the use of the latest SICK ASIC technology

Reduced machine downtimes thanks to longer sensor service life, even in harsh working conditions

Quick and easy installation thanks to optical adjustment indicator and self-locking nuts

High degree of flexibility and communication options thanks to IO-Link

Easy to implement customer-specific variants within the standard product portfolio

Applications

Machine tool

Container spreaders

Wind power plants

Car wash facilities

Doors and gates outdoors

Steel mills

Note

THÔNG SỐ KỸ THUẬT
Manufacturer SICK
Manufacturer Part No. IMB08-02BDSVU2K
Thread Size M8
Sensor Technology Inductive
Detection Range 2mm
Body Style Threaded Barrel
Digital Switching Output Type 2-Wire
Output Function No
Cable Length 2m
Connection Type Pre-Cabled
Supply Voltage 10 → 30 V dc
IP Rating IP68, IP69K
Length 32mm
Mounting Type Flush
Housing Material Stainless Steel
Maximum DC Voltage 30V
Minimum Operating Temperature -40°C
Switching Frequency 4 kHz
Standards Met CE Certified UKCA
Switching Current 100mA
Shielding Shielded
Maximum Switching Frequency 4 kHz
Maximum Operating Temperature +100°C
Reverse Polarity Protection Yes
Short Circuit Overload Protection Yes
Series IMB

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet SICK Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection... (PDF)
