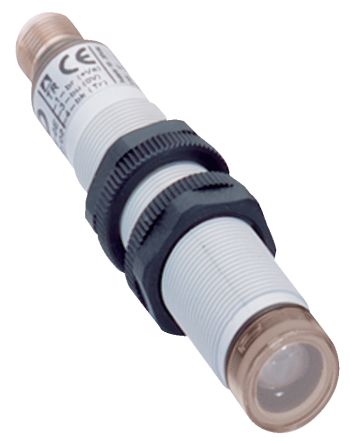

SICKL41E-21KA1AL41E Series Light Curtain Receiver, 1 Beam(s)

Mã nhà sản xuất
L41E-21KA1A
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Overview

The L41 single-beam photoelectric safety switch Light beam sensor consists of a sender and a receiver. The test input of the sender supports direct functional testing. Performance level PL e to EN ISO 13849 or Type 4 to IEC 61496 can be achieved in conjun

All devices are suitable for applications in challenging ambient conditions and enable even complex protection tasks to be accomplished by using deflector mirrors.

At a glance

Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849), only in conjunction with suitable testing device, e.g., Flexi Classic or Flexi Soft

Small M18 sensors with ranges up to 10 m

Compact M30 sensors with ranges up to 60 m

Enclosure rating IP 67

Tempe

Your Benefit

Easy integration due to small, compact versions with maximum range

Directly connect to a safety controller – reducing costs

Flexible device integration makes it possible to set up individual access protections

Well suited to withstand extreme ambient cond

Applications

Access or area protection on machining centers and robot cells

Monitoring of doors and service openings on machines

Optical safety edges for protecting automated guided vehicles

Note
