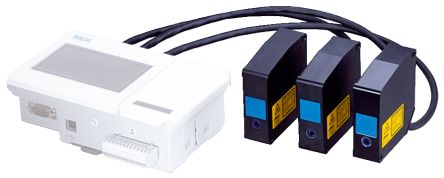

SICKOD5-25W01Distance Distance Sensor, Block Sensor, 26 mm Detection Range RS-422

Mã nhà sản xuất
OD5-25W01
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Overview

The OD Precision is a high accuracy, optical measuring system for measuring difficult object surfaces. In addition to glossy and dark black surfaces, it can also measure transparent and semi-transparent materials. The OD Precision is the only displacement measurement sensor that can connect three sensors to one controller, which reduces the amount of hardware required and makes it easier to measure the x-, y- and z-axes., e.g. for measuring the evenness of surfaces.

In order to reduce investment costs, the sensor can also be operated via RS-422, thus eliminating the need for a controller unit.

At a glance

Numerous measuring ranges from 24 mm ... 26 mm to 300 mm ... 700 mm

CMOS receiving element for measurement independent of surface

Maximum measurement accuracy and frequency

Glass thickness measurement with just one sensor head

Various light spot sizes

Integrated calculations for up to three sensors

Stand-alone use via RS-422

Your Benefit

Non-contact measurement improves quality inspection during production

Surface-independent measurement algorithms ensure minimum machine downtime, regardless of surface gloss or color

Reduced processing times as a result of the high measuring frequency of up to 10 kHz

Simple, cost effective solution for challenging measuring tasks due to a variety of sensor models

Optional stand-alone operation via RS-422 means the OD Precision offers maximum performance at lower investment costs

High visibility LC display enables simple, cost effective setup

Many interfaces for simple integration into an existing production environment

Applications

Factory automation

Electronics: Glass thickness measurement with just one sensor head

Machine tools: Precise component measurement

Tire: Inspecting the tire geometry

Battery: Electrode coating thickness measurements

Machine tools: Non-contact double sheet

Logistics automation

Traffic: Measuring train wheels and rail profiles

Process automation

Metal and steel: Continuous control of thickness of steel plate and steel sheeting
