SICKOD5-350W100Distance Distance Sensor, Block Sensor, 20 → 50 mm Detection Range

Mã nhà sản xuất
OD5-350W100
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

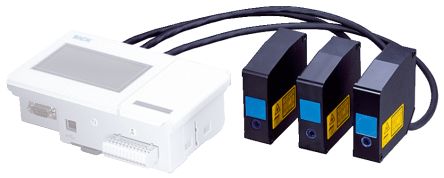

The OD Precision is a high accuracy, optical measuring system for measuring difficult object surfaces. In addition to glossy and dark black surfaces, it can also measure transparent and semi-transparent materials. The OD Precision is the only displacement measurement sensor that can connect three sensors to one controller, which reduces the amount of hardware required and make sit easier to measure the x-, y- and z-axes., e.g. for measuring the evenness of surfaces.

In order to reduce investment costs, the sensor can also be operated via RS-422, thus eliminating the need for a controller unit.

At a glance

Numerous measuring ranges from 24 mm ... 26 mm to 300 mm ... 700 mm

CMOS receiving element for measurement independent of surface

Maximum measurement accuracy and frequency

Glass thickness measurement with just one sensor head

Various light spot sizes

Integrated calculations for up to three sensors

Stand-alone use via RS-422

Your Benefit

Non-contact measurement improves quality inspection during production

Surface-independent measurement algorithms ensure minimum machine downtime, regardless of surface gloss or color

Reduced processing times as a result of the high measuring frequency of up to 10 kHz

Simple, cost-effective solution for challenging measuring tasks due to a variety of sensor models

Optional stand-alone operation via RS-422 means the OD Precision offers maximum performance at lower investment costs

High visibility LC display enables simple, cost-effective setup

Many interfaces for simple integration into an existing production environment

Applications

Double sheet control during sheet feeding

Precise component measurement

Regulating the calendaring process

Inspecting the tire geometry

Non-contact double sheet monitoring

Precise component measurement

Inline quality control for plastic plates

Glass thickness measurement with just one sensor head

Measuring display mounting with micrometre accuracy

Silicon ingot diameter measurement

Saw mark inspection on solar wafers

Easy alignment and positioning of solar cells

Height monitoring of solar cells for quality control

Detection, measurement, and positioning of the solar glass substrate

Safe handling of thin glass substrates

Electrode coating thickness measurements

Measuring train wheels and rail profiles

Continuous control of thickness of steel plate and steel sheeting
