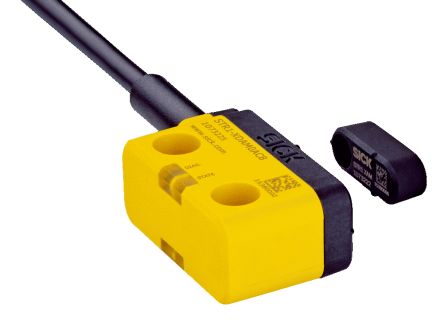

SICKSTR1-SAMU0AC8STR1 Series RFID Non-Contact Safety Switch, 24V dc, Vistal Housing, M12

the Str1 transponder safety switch has monitored semiconductor outputs (oSSds) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. the Str1 is available with three codes. universally coded sensors accept all actuators. an actuator must be taught into both the uniquely coded and permanently coded variants, this is the only actuator that the Str1 then accepts. the sensor has three active sensor surfaces. the actuator comes in three different sizes. this allows the Str1 to offer maximum mounting flexibility.

response range of up to 14 mm

Small housing with flexible mounting

options

Sensor activation possible from three

sides

three different actuators available
