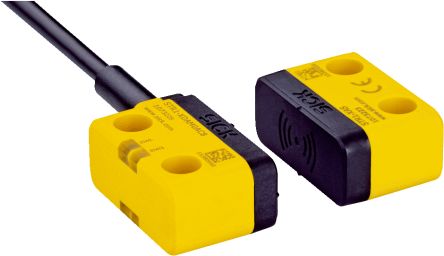

SICKSTR1-SASM03P8STR1 Safety Switch Actuator Included, Vistal

Overview

The STR1 RFID safety switch has monitored semiconductor outputs (OSSDs) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. The STR1 is available with three codes. Universally coded sensors accept all actuators.

An actuator must be taught into both the uniquely coded and permanently coded variants

this is the only actuator that the STR1 then accepts. The sensor has three active sensor surfaces. The actuator comes in four different sizes. This allows the STR1 to offer maximum mounting flexibility.

At a glance

Response range of up to 14 mm

Small housing with flexible mounting options

Sensor activation possible from three sides

Four different actuators available

Universally coded, uniquely coded, and permanently coded sensors

PL e (EN ISO 13849), SIL3 (IEC 61508)

Safe series connection of up to 30 sensors possible

Your Benefit

High level of flexibility when mounting the sensor and actuator

Reduced need for storage, as one sensor is suitable for a wide range of different applications

High level of manipulation protection due to individually coded actuator

High level of machine availability due to large door offset tolerance and high level of shock and vibration resistance

Economical solution due to series connection of up to 30 sensors

Fast diagnosis via LED status indicator

Long product service life due to low-wastage and low-maintenance configuration

Applications

Factory automation:

Monitoring of safety doors

Economic protection of assembly cells

Hazardous point protection on hydraulic presses

Economic hazardous point protection on an assembly cell

Safe robot platform for the final inspection of navigation systems
