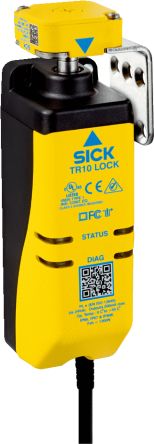

SICKTR10-SLM03PTR10 Safety Switch, Power, ABS

Overview

The TR10 Lock safety locking device combines the best features of tried and tested technology: outstanding manipulation-proofing for the RFID technology that monitors the actuator, plus a high-strength, highly reliable mechanical locking mechanism. The sensor's self-monitoring semiconductor outputs (OSSDs) can be cascaded and, thanks to a PL e performance level (EN ISO 13849), ensure maximum safety – for both door monitoring and locking monitoring.

Two codings are available, affording applications more flexibility. The universally coded sensors accept all suitable actuators, while uniquely coded sensors only allow actuators that have previously been taught in. The bistable solenoid coil consumes only a small amount of power and produces no heat when the system is either locked or unlocked.

At a glance

PL e for door and locking monitoring (EN ISO 13849)

1,690 N locking force

RFID actuator with low or high coding level (EN ISO 14119)

Enclosure rating IP 67, IP 69K

Power to lock or power to release variants

Reliable series connection of safety outputs (OSSDs)

Four actuation directions

Flexi-Loop-ready

Your Benefit

The high coding level of the actuator meets all the EN ISO 14119 requirements relating to manipulation-proofing without additional measures

Self-monitoring semiconductor outputs (OSSDs) afford a high level of safety

Reliable series connection reduces installation work

Rugged IP 69K housing ideally suited to use in heavily contaminated environments

Slim housing design with flexible actuator installation options enables simple machine integration

Bistable solenoid coil consumes only a small amount of power and produces no heat when the system is either locked or unlocked

Fast diagnosis via LED status indicator

Applications

Fields of applications

Protection of persons in the event of the machine making dangerous overrun movements

Process protection for automated production systems

Applications requiring a high standard of hygiene

Applications requiring a high level of manipu
