SICKUM30-211111M30 Proximity Sensor - Barrel, PNP Output, 30 → 250 mm Detection, IP65

Body Style Threaded BarrelConnection Type M12Detection Range 250mmĐường kính 30mm
Mã nhà sản xuất
UM30-211111
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2231016
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

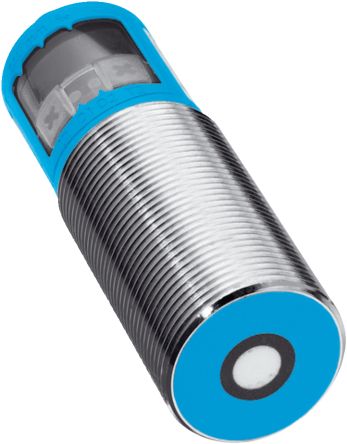

SICK UM30-211 Series Proximity Sensor, Ultrasonic Sensor Technology, Detection Range 250mm - UM30-211111

This proximity sensor is an ultrasonic device designed to detect objects within a range of 30mm to 250mm. It features a robust threaded barrel body style, making it suitable for various industrial applications. The sensor measures 30mm in diameter and is 84mm long, offering a reliable solution for automation in demanding environments.

Features & Benefits

  • Offers a detection range from 30mm to 250mm for versatile applications
  • Equipped with PNP output for easy integration into systems
  • Includes IP65 and IP67 ratings for protection against dust and water
  • Designed with a maximum switching frequency of 25Hz for efficient operation
  • Reverse polarity and short circuit overload protection ensure reliability
  • Temperature compensation maintains accuracy across a wide temperature range

Applications

  • Used for non-contact measurement of natural objects
  • Ideal for automation systems requiring precise distance measurement
  • Employed in harsh environments due to robust IP ratings
  • Utilised in assembly lines for object detection and counting
  • Suitable for proximity detection in material handling systems

What is the minimum and maximum operating temperature for this sensor?

The sensor can operate effectively in temperatures ranging from -25°C to +70°C, making it suitable for diverse environments.

How does the response time of this sensor affect its performance?

With a response time of just 32ms, the sensor quickly reacts to changes in detected distance, enabling efficient monitoring and control in automated applications.

What features improve the versatility of this ultrasonic sensor?

It offers adjustable operating modes, including switching point and background detection, allowing users to tailor its functionality to specific application needs.

How does this product ensure protection against environmental factors?

The IP65 and IP67 ratings indicate that the sensor is protected against water and dust ingress, ensuring reliable performance in challenging conditions.

THÔNG SỐ KỸ THUẬT
Manufacturer SICK
Manufacturer Part No. UM30-211111
Thread Size M30
Sensor Technology Ultrasonic
Body Style Threaded Barrel
Detection Range 250mm
Digital Switching Output Type PNP
Output Function NC
Connection Type M12
Supply Voltage 9 → 30 V dc
Length 84mm
IP Rating IP65, IP67
Width 30mm
Maximum DC Voltage 30V
Diameter 30mm
Minimum Operating Temperature -25°C
Maximum Switching Frequency 25Hz
Short Circuit Overload Protection Yes
Standards Met CE
Depth 30mm
Reverse Polarity Protection Yes
Switching Frequency 25Hz
Series UM
Maximum Operating Temperature +70°C
Switching Current 200mA

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
