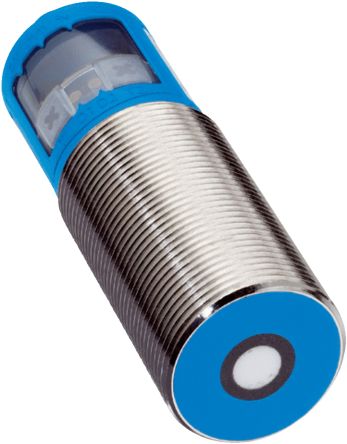

SICKUM30-211113Ultrasonic Threaded Barrel Proximity Sensor, M30, 250 mm Detection 0-10 V/4-20 mA, 9 → 30 V dc

Analogue Switching Output Type 0-10 V/4-20 mABody Style Threaded BarrelConnection Type M12Detection Range 250mm
Mã nhà sản xuất
UM30-211113
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Overview

The sensors of the UM30 product family impress with high flexibility. Various sensing ranges of up to 8,000 mm as well as countless configuration options leave no applications unsolved.

The high measurement accuracy provided by internal temperature compensation, along with color-independent object detection, immunity to contamination, and a wide operating temperature range up to 70 °C all ensure reliable operation, even under the most challenging conditions.

At a glance

Reliable measurement, regardless of material color, transparency, gloss, or ambient light

Sensing range up to 8,000 mm

Display enables fast and flexible sensor adjustment

Immune to dirt, dust, humidity, and fog

Versatile interfaces including IO-Link available

Adjustable sensitivity

Your Benefit

Easy system integration due to compact design

Flexible adaptation to application requirements due to numerous configuration options and adjustable sensitivity

Reliable measurement results since synchronization and multiplex mode prevents mutual interference of sensors

Inexpensive area monitoring possible due to sensor synchronization

Offline sensor configuration on display enables pre-configuration and saves time when commissioning the system

Integrated temperature compensation for high measurement accuracy

ObSB mode enables detection of any object between the sensor and a taught-in background

Applications

Level regulation for liquids and bulk materials

Detection, measurement and positioning of dark, shiny, and transparent materials

Diameter check for metal, paper, and plastic coils

Continuous detection of fabrics and wire grids

Collision avoidance

Outdoor applications

Note

THÔNG SỐ KỸ THUẬT
Manufacturer SICK
Manufacturer Part No. UM30-211113
Thread Size M30
Sensor Technology Ultrasonic
Body Style Threaded Barrel
Detection Range 250mm
Analogue Switching Output Type 0-10 V/4-20 mA
Connection Type M12
Supply Voltage 9 → 30 V dc
Length 84mm
IP Rating IP67
Housing Material Metal
Width 30mm
Maximum DC Voltage 30V
Minimum Operating Temperature -25°C
Standards Met CE, EAC
Series UM
Maximum Operating Temperature +70°C
Short Circuit Overload Protection Yes
Reverse Polarity Protection Yes

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
