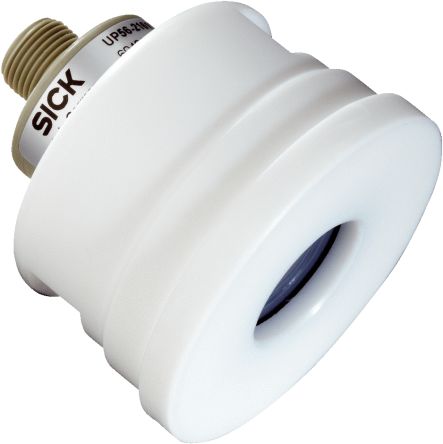

SICKUP56-211156UP56 Series TDR Level Sensor Level Sensor, 4-20mA Output, Threaded, FKM, PP, PTFE Body

Electrical Connection 5 Pin M12 ConnectorVật liệu vỏ PTFE (Polytetrafluoroethylene) / PP (Polypropylene) / FKM (Fluoroelastomer)Level Switch Type Level SensorMedia Type Fluid
Mã nhà sản xuất
UP56-211156
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

The UP56 ultrasonic level sensor is the ideal solution for demanding applications. The PTFE-protected transducer is pressure resistant up to 6 bar and also very resistant to difficult media. Stainless steel, PVDF and PFTE are also available as housing materials. This means the UP56 is suitable for non-contact measurement of aggressive, viscose, inhomogeneous or abrasive liquids and bulk materials.

Thanks to the combination of two switching signals in one device, idling and overfill can be monitored at the same time. With an analogue output and switching signal, continuous measurement with a separate overfill signal is also possible. The sensor is easy to parameterize using the integrated display, IO-Link or a Connect+ adapter.

At a glance

Operating range: up to 3.4 m, limiting range: up to 8.0 m

Pressure resistant up to 6 bar, temperature resistant up to 85°C

PTFE-coated membrane and GF D40 process connection made of PTFE

Analog output can be switched between 4 mA ... 20 mA and 0 V ... 10 V

Different sizes available

Simple operation, also via Connect+

IO-Link 1.1

Your Benefit

Non-contact and therefore wear-free measurement even in pressurized containers

Universal application – even in difficult media such as acids or bases

Quick and easy parameterization

Switching output and analogue output in a single device

Adjustable ultrasonic cone for stable measurements even in tight installation spaces

Reliable blanking of stirrers possible

Measures accurately and reliably even in mediums with density fluctuations

Applications

Fields of applications

Level monitoring of equalizing and compensating reservoirs

Level monitoring of bulk materials

Fill level measurement of wet chemical processes in the electronics and solar industry

Fill level measurement of feed tanks for the additi
