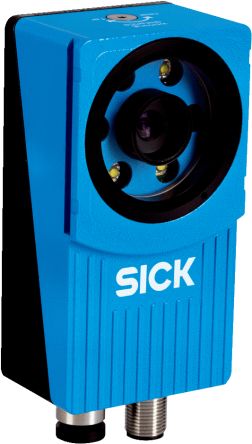

SICKVSPM-6F2113CMOS, White Light, Monochrome Vision Sensor- 640 x 480

Detection Range 50 mmImaging Technology CMOSĐộ phân giải 640 x 480Vision Color Type Monochrome
Mã nhà sản xuất
VSPM-6F2113
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2231020
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Overview

The Inspector is an intelligent vision solution in an easy-to-use sensor package. No matter if the task is to verify completeness and quality, find a part's position or measure its dimensions, the Inspector is up to the challenge. The sensors' rugged design and IP 67 metal housing makes them ideal for tough environments and intelligent processing technology makes the Inspector perfect for high-speed applications. The flexible housing is designed to easily optimize the optical needs of your application. This ensures excellent inspection even with tough targets, such as highly reflective metal parts and multi-coloured labels. The Inspector family provides broad support for control, monitoring and data collection through a variety of interfaces. This vision sensor provides everything to meet your integration needs and facilitate daily work.

At a glance

High-speed positioning, inspection and measuring

Powerful "object locator" tool, independent of position, rotation and scale

Unique, interchangeable housing design supporting dome and various optical accessories

Simple step-by-step configuration in PC including emulator

Easy-to-use operator interfaces

Flexible machine and HMI design interfaces

Your Benefits

The multi-functional vision toolbox offers smart camera-level performance but with sensor ease-of-use

Unique, interchangeable housing design provides the easiest way to improve image quality

The simple configuration in SOPAS, including emulator for offline configuration and testing, will reduce downtimes in production to a minimum

The easy-to-use operator interfaces are optimized to make it easier for the operator to oversee daily work more efficiently

Ethernet communication and web API gives excellent connectivity and freedom to customize user's HMI

Applications

Storage space positioning for storage and retrieval systems

Weld cap tests

Checking the installation of the instrument panel

Positioning the dashboard

Inline quality testing in the position

Sensor-based robot guidance

Monitoring the adhesive layer

Stationary monitoring of adhesive beads in a joining process

Edge guiding after calendaring

Inspecting the surface of the calendared rubber

Detecting the end of the reel when unwinding material

Open splice detection

Error prevention through inline test

Monitoring the release agent

Position detection of products on conveyor belts

Check of codes on packaging

Quality control of preforms

Check of codes on packaging

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

.THÔNG SỐ KỸ THUẬT:
Light Source White Light
Imaging Technology CMOS
Vision Color Type Monochrome
Detection Range 50 mm
Resolution 640 x 480
