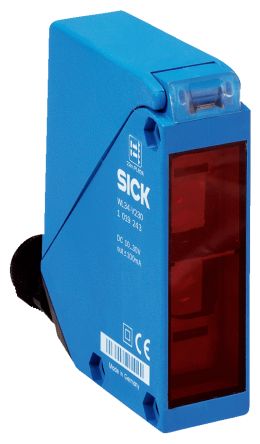

SICKWL34-V240Background Suppression Photoelectric Sensor, Rectangular Sensor, 100 → 2500 mm Detection Range

Connection Method Terminal BlockSensing Distance Max 15mSensing Method RetroreflectiveSensing Range Max 15m
Mã nhà sản xuất
WL34-V240
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Overview

The robust ABS plastic housing in which all operating elements are protected is an essential feature of the W34 series. This makes it possible to also use these sensors outdoors. It is especially recommended to use the die-cast zinc housing (W24-2 series) for harsh and extreme ambient conditions The sensors are equipped with a minimum of different functions in order to reduce the diversity of the devices and, thus, their storage. In addition, both DC and DC / AC devices are offered in this form. The W34 series includes photoelectric sensors with background suppression, reflex barriers and single-beam systems. Photoelectric sensors are characterized by high accuracy at a great distance and high insensitivity to stray light.

At a glance

Rugged plastic or die-cast zinc housing (W24-2)

The operating elements are protected by a cover

High insensitivity to stray light and no interference due to face-to-face mounting of photoelectric sensors

NPN / PNP switch

Light / dark switch

Models for 10 to 30 V DC or 12 to 240 V DC / 24 to 240 V AC power supply

Optional: test input, time scales and contamination message

M12 connector or M16 screw connection, each rotatable by 90 °

UL approval

Your Benefit

Very good resistance to chemicals prolongs service life

The operating elements under the "hood" offer flexibility as well as the best protection in the application and reduce the diversity of devices and therefore storage.

Safe operation in the event of parasitic light and opposite mounting of devices

Best availability thanks to the very large functional reserve for reflex and single-beam barriers

Mounting compatibility, as DC and DC / AC devices are available in the same form

Note
