SOLAHDHS22F1B1kVA Buck Boost Transformer, 240V ac, 480V ac Primary, 24V ac, 48V ac Secondary

Maximum Operating Frequency 60HzMinimum Operating Frequency 50HzKiểu lắp PanelCông suất 1kVA
Mã nhà sản xuất
HS22F1B
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
8913626
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

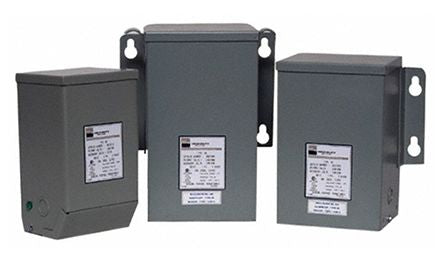

SolaHD Hazardous Location Transformers

These heavy-duty encapsulated transformers have been designed for use in hazardous locations (Class 1, Division 2, Group A-D). They are also suited to harsh industrial environments. The encapsulation and rugged NEMA 3R enclosures help to provide protection from dust, moisture and also provide extra shock and vibration resistance. Available in both single and 3 phase options.

Rated for hazardous locations and harsh industrial environments

UL listed

Available in both single and 3 phase options

Single phase: 0.05 kVA to 0.250 kVA

Single Phase: (0.50 → 25 kVA), 3 Phase (3 → 45 kVA)

Conduit knockouts for side entry into roomy wiring compartment

Copper lead wire terminations

0.500 kVA → 10 kVA units are encapsulated with electrical grade silica sand and epoxy for industrial applications

THÔNG SỐ KỸ THUẬT
Primary Voltage Rating 240V ac, 480V ac
Secondary Voltage Rating 24V ac, 48V ac
Power Rating 1kVA
Mounting Type Panel
Maximum Operating Frequency 60Hz
Minimum Operating Frequency 50Hz
