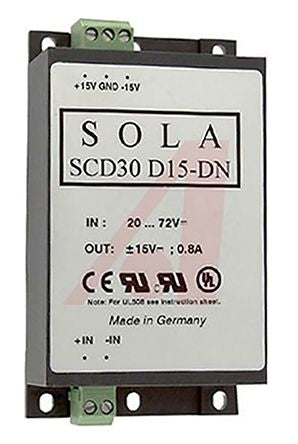

Non-Isolated DC-DC Converter, -15 V dc, 15 V dc Output, 800mA [SCD30D15-DN]; 891-3402
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 20 → 72 V dc |
| Output Voltage | -15V dc, 15 V dc |
| Output Current | 800mA |
| Power Rating | 30W |
| Mounting Type | Chassis Mount, DIN Rail Mount |
| Number of Outputs | 2 |
| Length | 120mm |
| Width | 65mm |
| Depth | 33mm |
| Minimum Temperature | -25°C |
| Maximum Temperature | +65°C |
| Power Signal Conversion Type | DC-DC |
| Load Regulation | ≤0.5% |
| Special Features | DIN Rail or Chassis Mount by Removing DIN Clips, Five Year Limited Warranty, Galvanic Isolation, IP20 Protection, Rugged Encapsulated Design to Resist Environment |
| Standards Met | CE, CRUus, CULus |
| Series | SCD |
| Holdup Time | >10ms |
| Protection Features | Over Current Protection |
| Application | Harsh Environment, Industrial, Remote Site, Telecom |
| MTBF | 800000h |
| Weight | 390g |
| Ripple And Noise | ≤1 (Ripple) %, ≤2 (Noise) % |
| Regulator Type | Switched Mode Power Supply |
| Line Regulation | ≤0.5% |
