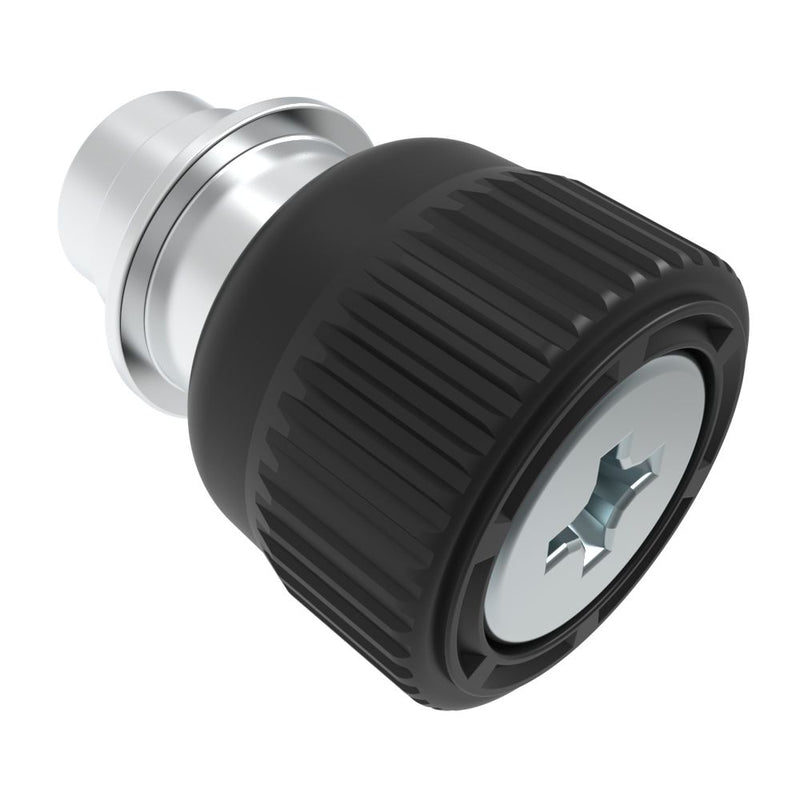

Southco47-10-331-50Captive Screw, 8-32 Thread, Floating, Phillips Recess, Knurled Black Knob

Bề mặt Sơn tĩnh điệnColor/Appearance BlackMàu BlackFastened Screw Projection (in) 0.29
Mã nhà sản xuất
47-10-331-50
Thương hiệu
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Southco 47-10-331-50 là vít không rơi (captive screw) của hãng Southco (Mỹ).

Tên gốc: Captive Screw, 8-32 Thread, Floating, Phillips Recess, Knurled Black Knob

Thông số chính:

  • Vật liệu: Stainless Steel
  • Hoàn thiện bề mặt: Powder Coat
  • Màu sắc: Black
  • Kiểu đầu: Phillips Recess
  • Kiểu lắp: Floating
  • Ren / kiểu lỗ: 8-32

Cách chọn nhanh:

  • Chọn theo cỡ ren, chiều dài và kiểu đầu vít.
  • Vít không rơi được giữ lại trên tấm che khi tháo, phù hợp nắp tháo lắp thường xuyên.

Xem cách đọc mã Southco và chọn khóa tủ điện trong bài hướng dẫn. Chánh Vinh cung cấp hàng chính hãng, xuất hóa đơn VAT đầy đủ; gửi mã 47-10-331-50 và số lượng qua CV@chanhvinh.com để được báo giá.

_THÔNG SỐ KỸ THUẬT:

Part Number 47-10-331-50
Manufacturer Southco
Color Black
Fastened Screw Projection (in) 0.29
Fastened Screw Projection (mm) 7.3
Finish/Plating Powder Coat
Head Style Phillips Recess
Installation Floating
Knob Material Aluminum Alloy
Knob Style Knurled
Material Stainless Steel
Max Outer Panel Thickness (in) 0.06
Max Outer Panel Thickness (mm) 1.6
Min Outer Panel Thickness (in) 0.03
Min Outer Panel Thickness (mm) 0.8
Recess Size Phillips Recess #2
Series Styled Knob
Thread or Hole (standard) 8-32
Unfastened Screw Projection (in) 0.09
Unfastened Screw Projection (mm) 2.3
Thông số kỹ thuật
Manufacturer Southco
Manufacturer Part No. 47-10-331-50
Material Stainless Steel
Finish Powder Coat
Color/Appearance Black
Knob Style Knurled
Knob Material Aluminum Alloy
Thread or Hole Type 8-32
Head Style Phillips Recess
Installation Floating
Recess Size Phillips Recess #2
Series Styled Knob
Min. Outer Panel Thickness (mm) 0.80
Max Outer Panel Thickness (mm) 1.60
Fastened Screw Projection (mm) 7.30
Unfastened Screw Projection (mm) 2.30
Class 47/4C - Captive Screws
