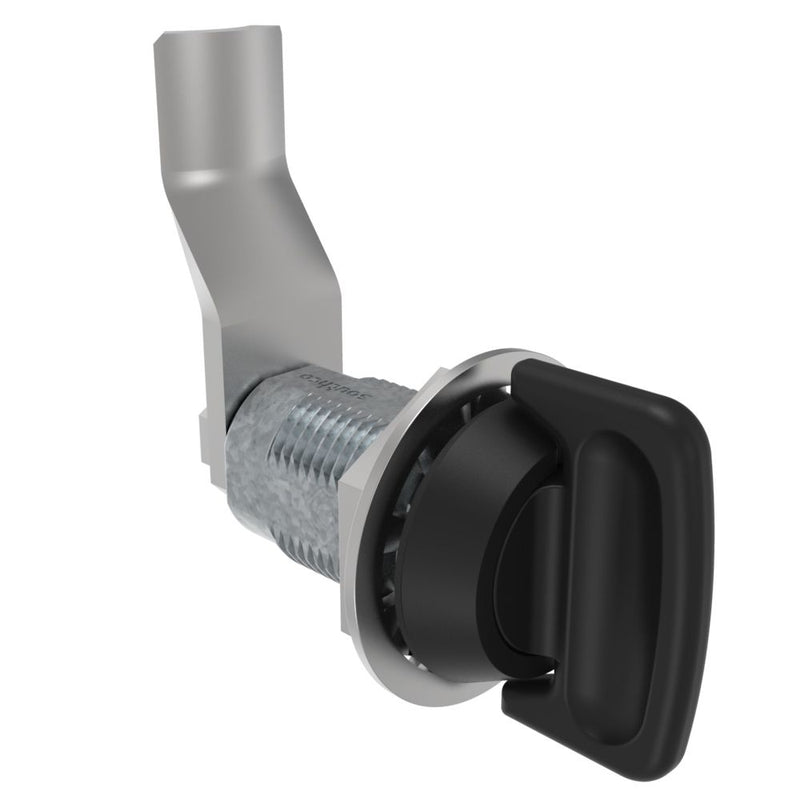

SouthcoE3-107-115VISE ACTION® Compression Latch, Large Size, Knob Style, Zinc Alloy, Powder Coated, Black, 37 mm (1.46 in) Grip

Access Restriction No Restriction✓ Cam AttachedColor/Appearance BlackDoor Thickness Range (millimeter) (inch) 7.000 mm (0.28 in)
Mã nhà sản xuất
E3-107-115
Thương hiệu
Liên hệ
📩 Liên hệ để có giá tốt: [email protected]
SOUTHCO E3-107-115 Southco’s VISE ACTION® Compression latches provide mechanical advantage, ensuring tight, robust vibration resistant door closure to seal out water and dust in the most strenuous applications. The smooth operation of the VISE ACTION® design aligns the cam behind the frame, then draws it straight up tight to prevent scraping against the frame, with a single continuous half-turn motion. Its compression action provides consistent 6.4 mm (.25”) pull-up for environmental sealing in gasketed applications, and helps reduce or eliminate noise and rattles caused by vibration. Over-center latching resists accidental opening due to shock or vibration.

_THÔNG SỐ KỸ THUẬT:

Part Number E3-107-115
Manufacturer Southco
Finish Powder Coat
Color/Appearance Black
Material Zinc Alloy
Grip Type Fixed
Mounting Style Single Hole Mount
Head Style Knob Style
Cam Attached Yes
Rotation (°) Type A - Turn Clockwise to Latch
Operation Turn Clockwise to Latch / Lock
Size Series 19.1mm
Door Thickness Range (millimeter) (inch) 7.000 mm (0.28 in)
Access Restriction No Restriction
Grip Range (millimeter) (inch) 37.000-39.000 mm (1.46-1.54 in)
